docs/keymaps-config.ans

docs/keymaps-config.ans · Keymaps and config

The modern and ACiDDraw key presets, your own bindings, and every setting in the config file.

Two presets

modern is the default: Ctrl-S saves, Ctrl-Z undoes, and so on.
acid gives ACiDDraw’s Alt-letter keys on top of it.

The acid preset changes these keys:

Key	Action
`Alt-B`	block menu
`Alt-R`	undo
`Alt-S`	save
`Alt-L`	open
`Alt-D`	SAUCE info
`Alt-O`	document properties
`Alt-C`	clear layer
`Alt-X`	quit
`Alt-H`	help
`Alt-Z`	iCE colors
`Alt-U`	pick up colors
`Alt-I` / `Ctrl-Y`	insert / delete line
`Ctrl-Shift-Z`	redo
`Esc` while typing text	the color dialog

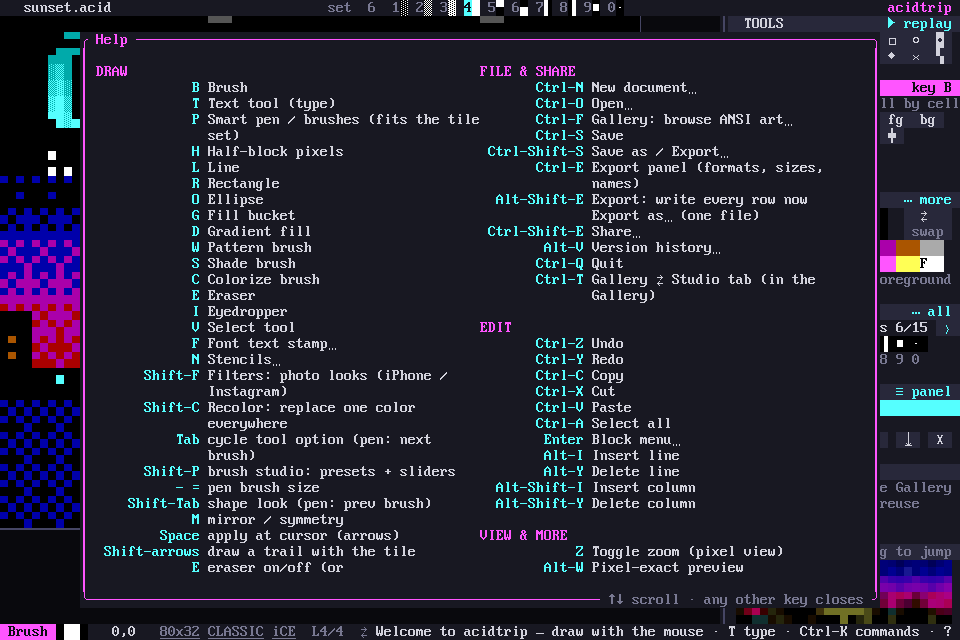

The key sheet

? (or Alt-H, F12) shows the live key sheet: the keys as they are bound right now, including your own overrides. The command palette shows each command’s key too.

Single-letter keys only work while a drawing tool is active. While you type text they type text instead.

Your own keys

Override any key in the config file. Each action takes a list of key specs such as "ctrl-s", "alt-b", "shift-f1" or "ctrl-shift-h":

[keymap]
preset = "modern"            # or "acid"

[keymap.bindings]
save = ["ctrl-s", "f2"]

acidtrip keys lists every action id, its title and its keys, grouped by category.

The config file

The first run writes a config file with comments. Palette › Open settings file opens it, and Reload settings picks up your changes. Unknown keys are ignored, and anything you delete falls back to its default.

autosave_seconds = 20        # crash-recovery autosaves (0 = off)
version_every_minutes = 5    # version snapshots (0 = only on save)
backup = "bak"               # "none", "bak" or "numbered"

[new_doc]
kind = "classic"             # or "modern"
width = 80
height = 25
ice = true

[ai]
api_key = ""                 # empty: use ANTHROPIC_API_KEY
model = "claude-sonnet-5"
max_tool_rounds = 24

[share]
paste_url = "https://0x0.st"
png_scale = 2

[ui]
sidebar = true
show_grid = false
preview = true               # pixel-exact preview on kitty, sixel, iTerm
author = ""                  # SAUCE defaults for new documents
group = ""
name = ""                    # your name when drawing together

Where things live

acidtrip paths prints where the config, fonts, stencils, versions, recovery files and sockets live. Set ACIDTRIP_HOME to keep everything in one directory.
